2110MHz-2170MHz 50W Final Solution

应用方案 | 日期：2024-07-21 | 阅读：

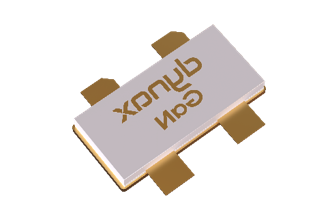

2110MHz-2170MHz 50W Final Solution(图1)Final:DXG1CH22A-520EF

2110MHz-2170MHz 50W Final Solution(图2)

Package Type:780-4





CW Pulsed 10%


Modulated  Signal

Freq (MHz)

Psat (dBm)

Gp (dB)@49.0dBm

DE (%)@49.0dBm

ACLR (dBc)@ 49.0dBm

211057.015.057.6-33.5
214057.114.858.2-34.6
217057.014.758.4-35.8


Remark : Test  ConditionCW Pulsed: 10% Duty Cycle, 100uS Duration; Modulated Signal Type: 3.84MHz, 1C_WCDMA, PAR=7.8dB; 64DPCH;Tested without isolator.
